From Matsubara to the World
Matsubara Reed's metal reeds support
the production of higher grade fabrics.
Matsubara Reed's metal reeds support
the production of higher grade fabrics.
Reeds for Wire Mesh
Reeds for Wire Mesh
Reeds for Wire Mesh
Reeds (for screen printing and industrial filters)
Matsubara Reed has all reeds up to 640 mesh.
Reeds for synthetic monofilaments
Reeds for synthetic monofilaments
Each reed for industrial filters and mesh and silk screens is made with a special type of steel that has been heat treated, and the reed dents are polished with ultra-precision to have round edges. Friction is minimized.
Plastic wire mesh reeds for papermaking materials
The reed dents are specially polished to have round edges and are finished with extremely high accuracy.
Healds
Healds

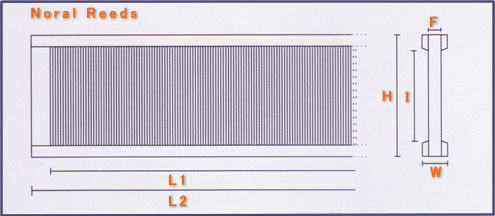

Normal Reeds
Please provide the following sizes when ordering reeds.
○ No. of mesh (inch) and diameter of warp
○ Sizes L1: Weave width L2: Overall length
I: Inner height F: Width of reed dent W: Overall thickness
○ No. of mesh (inch) and diameter of warp
○ Sizes L1: Weave width L2: Overall length
I: Inner height F: Width of reed dent W: Overall thickness

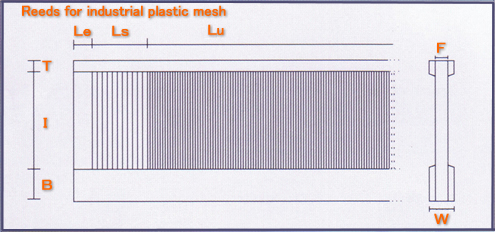

Reeds for industrial plastic mesh
○ No. of mesh (inch) and diameter of warp
○ Sizes
Lu: Workable width Ls: Selvedge width T: Top band width
I: Inner height B: Bottom band height F: Overall thickness
○ Sizes
Lu: Workable width Ls: Selvedge width T: Top band width
I: Inner height B: Bottom band height F: Overall thickness
